Two-Way Arduino Traffic Light Controller.
The components that are required are:
1. 6 LEDs (2 Red, 2 Yellow,2 Green)
2. Breadboard.
3. Arduino Uno
4. Jumper Wires
5.6 x 220ohm Resistors
The circuit diagram:
The Code:
// C++ code
//
int green=13;
int yellow=12;
int red=11;
int green2=10;
int yellow2=9;
int red2=8;
void setup() {
pinMode(green, OUTPUT);
pinMode(yellow , OUTPUT);
pinMode(red , OUTPUT);
pinMode(green2, OUTPUT);
pinMode(yellow2 , OUTPUT);
pinMode(red2 , OUTPUT);
digitalWrite(green ,HIGH);
digitalWrite(yellow ,HIGH);
digitalWrite(red ,HIGH);
digitalWrite(green2 ,HIGH);
digitalWrite(yellow2 ,HIGH);
digitalWrite(red2 ,HIGH);
delay(1000);
digitalWrite(green ,LOW);
digitalWrite(yellow ,LOW);
digitalWrite(red ,LOW);
digitalWrite(green2 ,LOW);
digitalWrite(yellow2 ,LOW);
digitalWrite(red2 ,LOW);
}
/* dual line traffic light
* http://www.techhubmega.blogspot.com
* WRITER IS AMIR PHILIP
* route 1 red led time = route 1 red led time [1] + route 1 red led time [2]
* route 2 red led time = route 2 red led time [2] + route 2 red led time [2]
* route 1 total red led time = 1 second or 60000 ms
* route 2 total red led time = 1 second or 60000 ms
*/
void loop() {
digitalWrite(green ,HIGH);
digitalWrite(red2 ,HIGH);
delay(1000); /* route 1 green led time and route 2 red led time [1] */
digitalWrite(green ,LOW);
digitalWrite(yellow ,HIGH);
delay(1050); /* route 1 yellow led time and route 2 red led time [2] */
digitalWrite(yellow ,LOW);
digitalWrite(red ,HIGH);
digitalWrite(red2 ,LOW);
digitalWrite(green2 ,HIGH);
delay(1450); /* route 1 red led time [1] and route 2 green led time */
digitalWrite(green2 ,LOW);
digitalWrite(yellow2 ,HIGH);
delay(1050); /* route 1 red led time [2] and route 2 yellow led time */
digitalWrite(red ,LOW);
digitalWrite(yellow2 ,LOW);
}

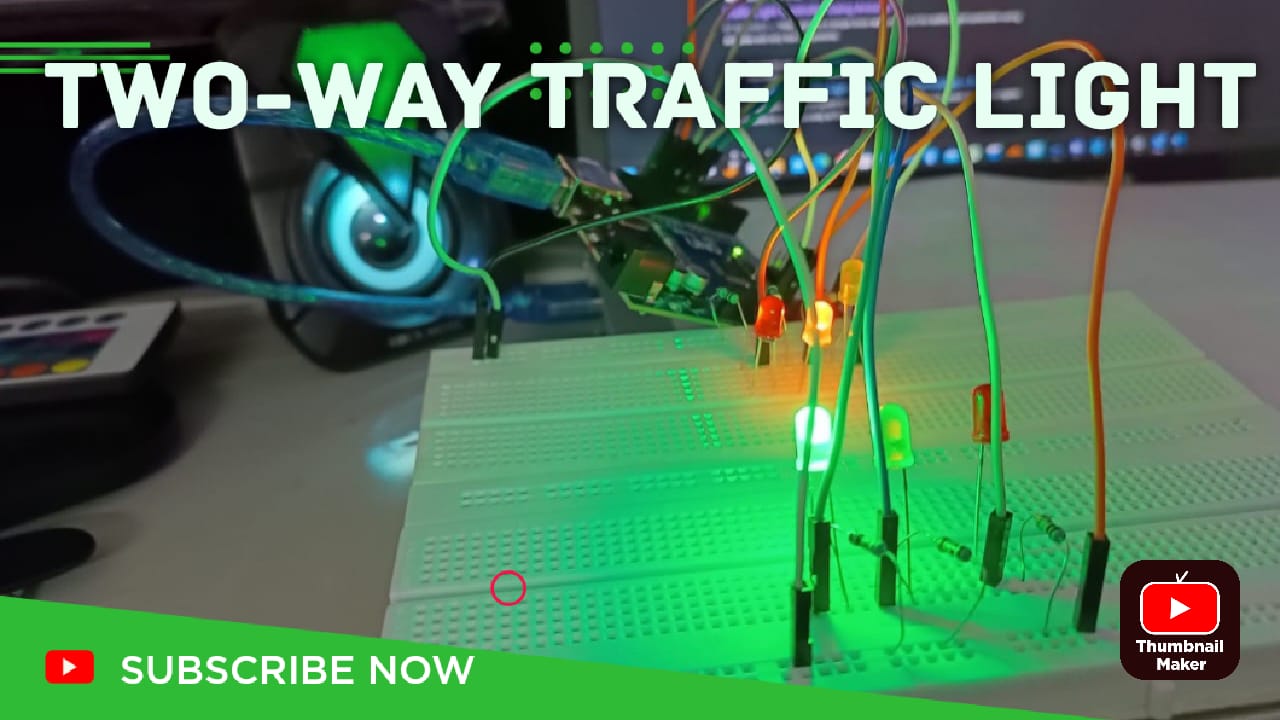

The resulting output;
